Millions of Consumable Products for the Aerospace Industry

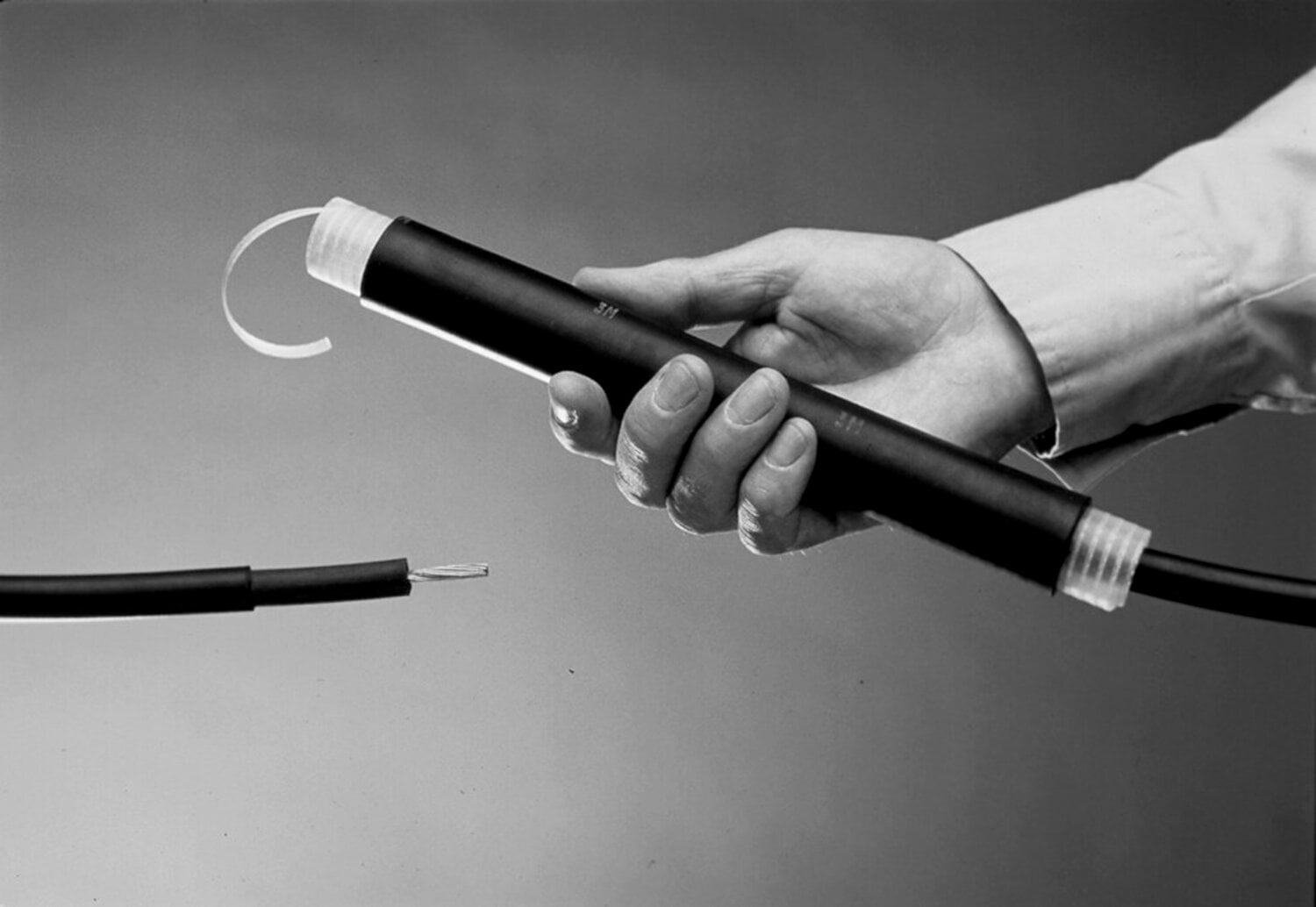

3M Inline Splicing Kit 5741, 5 - 15 kV, Standard, 1/case

Part Number: 00054007494911 View more details
7000140701 - 3M Inline Splicing Kit 5741, 5 - 15 kV, Standard, 1/case

Product Specifications

Unit of Measure
KT
Sold As
Case
Minimum Order Qty
1 KT
Incremental Order Qty
1 KT
Stock Type
Make To Order
Shelf Life
60 Months
Catalog #
5741
Manufacturer ID
7000140701
UPC
00054007494911
ECCN
EAR99
Manufacturer
3M

Details

Highlights

Designed for use with 10000, 11000 and 20000 Series inline compression connectors
Perfect for splicing non-shielded, wet/dry solid dielectric power cables
Rated for 5/8 kV applications
RoHS 2011/65/EU Compliant
The rubber mastic filler removes time-consuming penciling of cable insulation
The 3M Cold Shrink Splicing Products are designed using the proprietary cold shrink delivery system developed by 3M.The 3M Cold Shrink Splicing Products are designed using the proprietary cold shrink delivery system developed by 3M. Products are supplied prestretched on a removable core for efficiency and ease of installation. 3M Cold Shrink Splices 5740 Series are used for single conductor, non-shielded 5/8 kV cables. Each kit is a cold shrink design and contains enough material to insulate three splices. Connectors are not included and must be ordered separately. Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation outside diamater.
