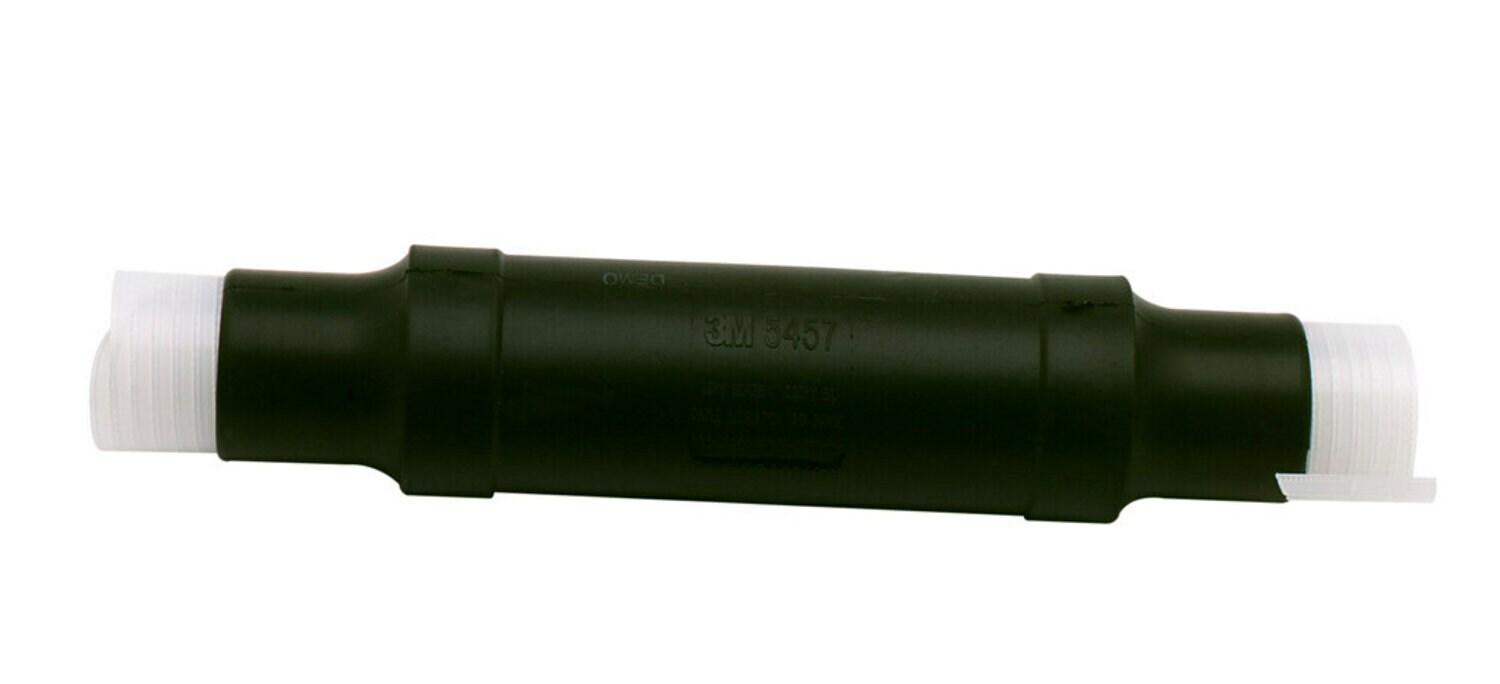

3M Cold Shrink Splice Kit 5551-3C-AC, 3/C, 5kV and 8kV, 6 - 3/0 AWG copper or aluminum, 1/case

Part Number: 00051128543177 View more details
7000006190 - 3M Cold Shrink Splice Kit 5551-3C-AC, 3/C, 5kV and 8kV, 6 - 3/0 AWG copper or aluminum, 1/case

Product Specifications

Unit of Measure
KT
Sold As
Case
Minimum Order Qty
1 KT
Incremental Order Qty
1 KT
Stock Type
Standard
Shelf Life
1825 Days
Catalog #
5551-3C-AC
Manufacturer ID
7000006190
UPC
00051128543177
ECCN
EAR99
Manufacturer
3M

Details

3M Cold Shrink/Sheath Wrap, Armored or Non-Armored Splice Kit 5551-3C-AC is for splicing 3/C, 5/8 kV shielded, armored and non-armored cables. Connectors are not included. Kits include Sheath Wrap to reconstitute the cable’s armor. Meets the requirements of IEEE 404. Each kit makes one 3/C splice.3M 5551 3C AC Series Cold Shrink Resin Inline Splice Kit contains Armorcast structural material to reconstitute the cable's armor. This kit contains 6 copper tape strips, 3 Scotch electrode wraps 13, 3 cold shrink insulators, 3 shielding braid sleeves, 6 small constant force springs, 2 large constant force springs and more. IEEE Approved.
