3M Scotchcast Mining Splice 8096-2 (2131), 1 Kits/Case

Part Number: 00051128591789 View more details
7100018397 - 3M Scotchcast Mining Splice 8096-2 (2131), 1 Kits/Case

Product Specifications

Unit of Measure
KT
Sold As
Case
Minimum Order Qty
1 KT
Incremental Order Qty
1 KT
Stock Type
Make To Order
Shelf Life
36 Months
Catalog #
8096-2
Manufacturer ID
7100018397
UPC
00051128591789
ECCN
EAR99
Manufacturer
3M

Details

Highlights

ABS Certified, MSHA Approved and RoHS 2011/65/EU Compliant?
Designed for splicing SHD-GC, MPF-GC and MPF non-shielded cables
Flame-retardant resin 2131 is used as an insulating material for cable splices
Perfect for use on draglines, power shovels, drills and type MPF underground power feeder cables
Rated for 5 to 15 kV applications

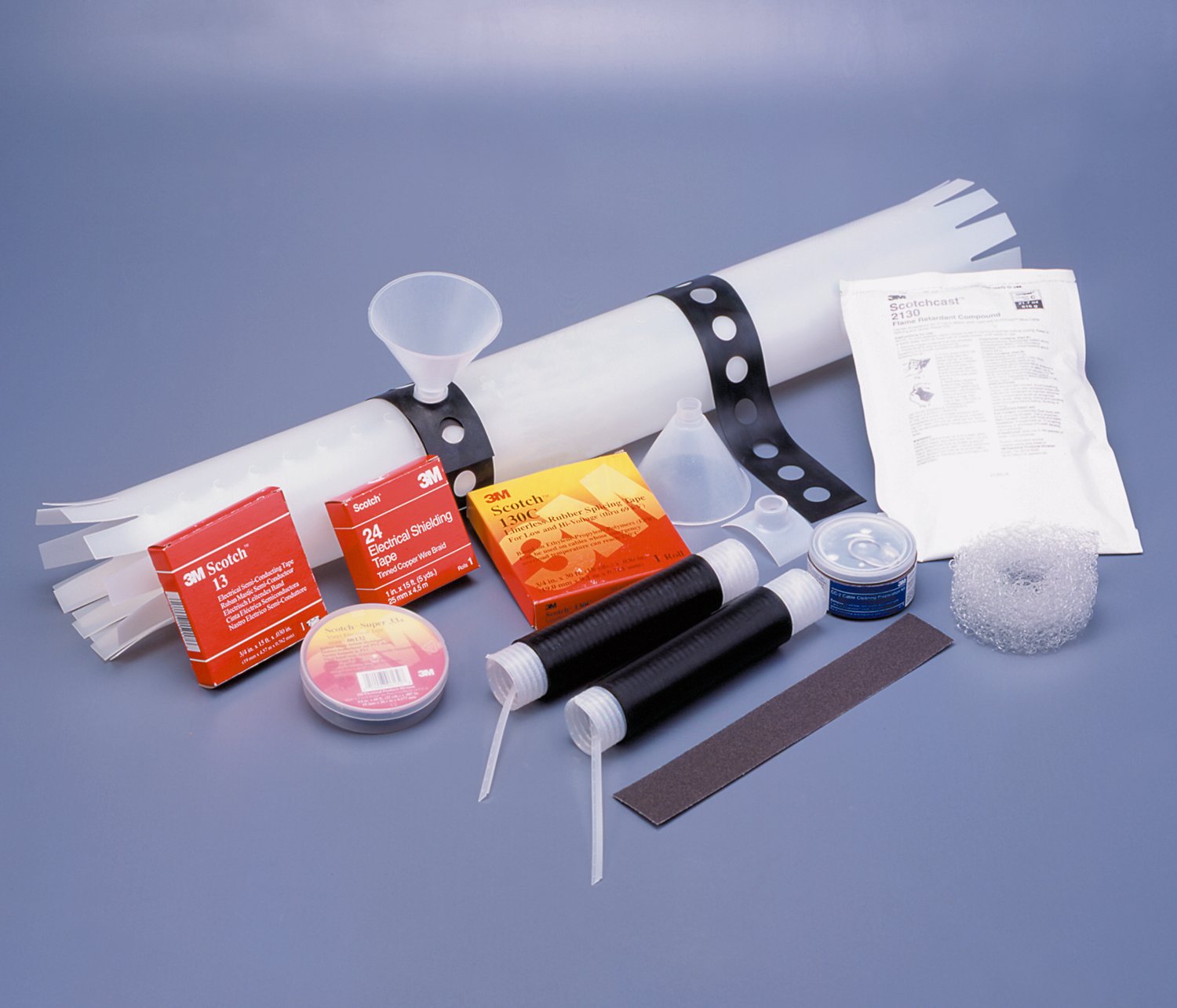

3M 8096 Series Cold Shrink Resin Mine and Portable Cable Splice Kit with flame retardant compound 2131 is designed for splicing SHD GC, MPF GC and MPF non shielded cables that are 5 to 15 kV rated. It provides splicing on draglines, power shovels, drills, type MPF underground power feeder cables and select trailing cables.The 3M Scotchcast Mine and Portable Cable Splice Kit contains two 3M Funnels, three EPDM Rubber 3M Cold Shrink Insulator Assemblies, one 3M Wrap-Around Splice Mold, one roll of Scotch Super 33+ Vinyl Electrical Tape, two 3M Rubber Mold Straps, two rolls of Scotch Electrical Shielding Tape 24, two 3M Funnel Supports, one 3M Cable Cleaning Preparation Kit, three 3M Spacer Webs, one roll of Scotch Electrical Semi-Conducting Tape 13, one strip of 3M Three-M-Ite Elek-Tro-Cut Abrasive Cloth - 80J Grit, one roll of Scotch Linerless Rubber Splicing Tape 130C, six 3M Size C Bags, 3M Scotchcast Flame-Retardant Compound 2131, and one Instruction Sheet.
