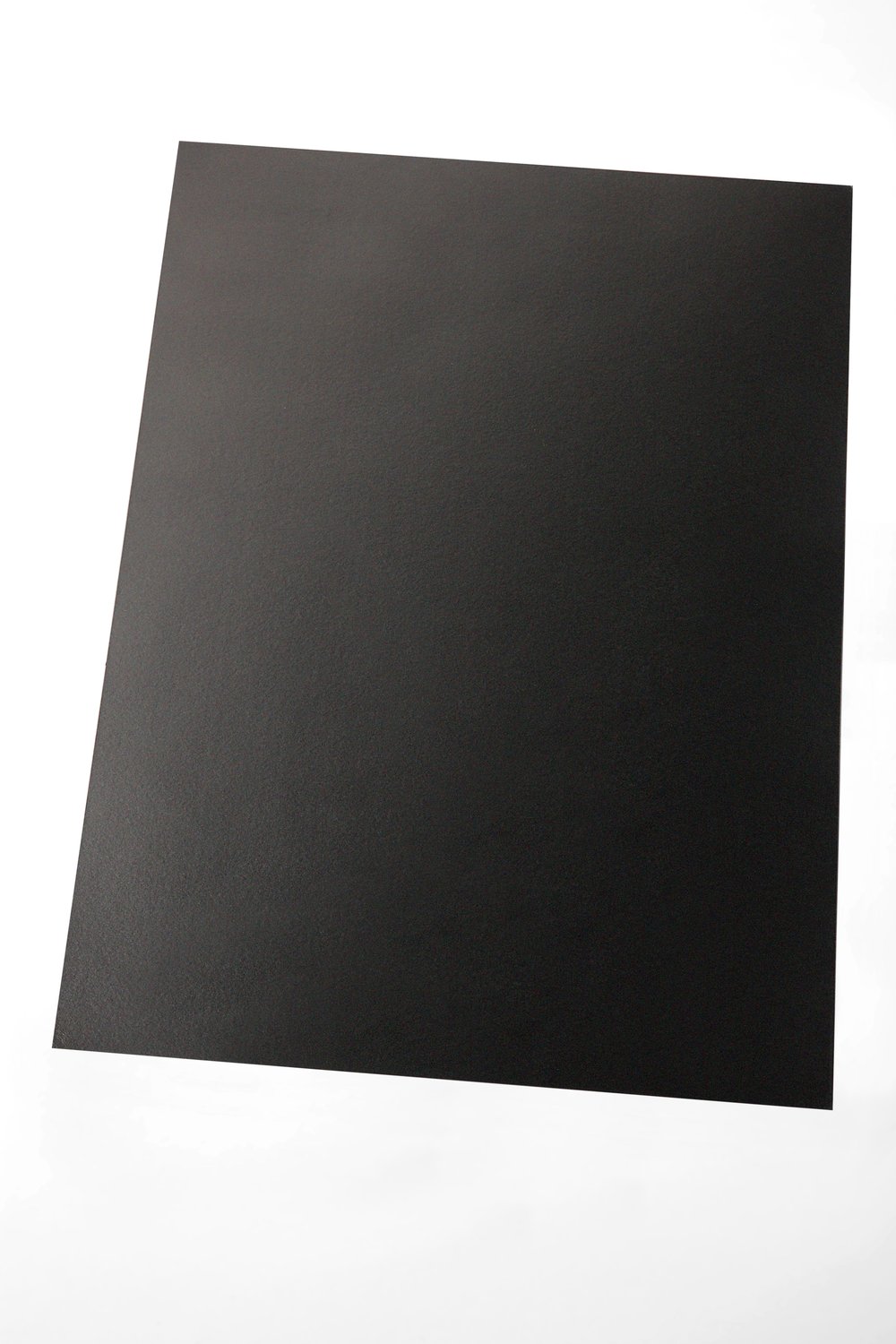

3M EMI Absorber AB7050HF, 210 mm x 297 mm

Part Number: 08806080038061 View more details
7100084010 - 3M EMI Absorber AB7050HF, 210 mm x 297 mm

Product Specifications

Size
210 mm x 297 mm
Unit of Measure
ST
Sold As
Case
Minimum Order Qty
50 ST
Incremental Order Qty
50 ST
Package Quantity
50 Sheets per Case
Stock Type
Standard
Shelf Life
365 Days
Catalog #
AB7050HF
Manufacturer ID
7100084010
UPC
08806080038061
ECCN
EAR99
Manufacturer
3M

Details

Highlights

Acrylic   pressure-sensitive adhesive (PSA) allows for easy application
Easily die-cut into complex shapes
High-permeability magnetic film
Improved lower frequency absorber vs. the 3M EMI Absorber AB5000 Series or 3M EMI Absorber AB5000S Series (at < 1 GHz)
Less than 1500 ppm total bromine and chlorine
Less than 900 ppm bromine and chlorine
Low-halogen version of 3M EMI Absorber AB7000 Series absorbers
Meets guidelines set forth in IEC 61249-2-21
The 3M EMI Absorber AB7000HF Series is a high-permeability magnetic EMI absorber for near-field applications. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 300 MHz to 4 GHz. Target frequency range– the “sweet spot” for peak performance – is 800 MHz - 2.5 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. These sheet type EMI absorbers are excellent for absorbing near-field EMI inside and around electronic devices and assemblies.
