Millions of Consumable Products for the Aerospace Industry

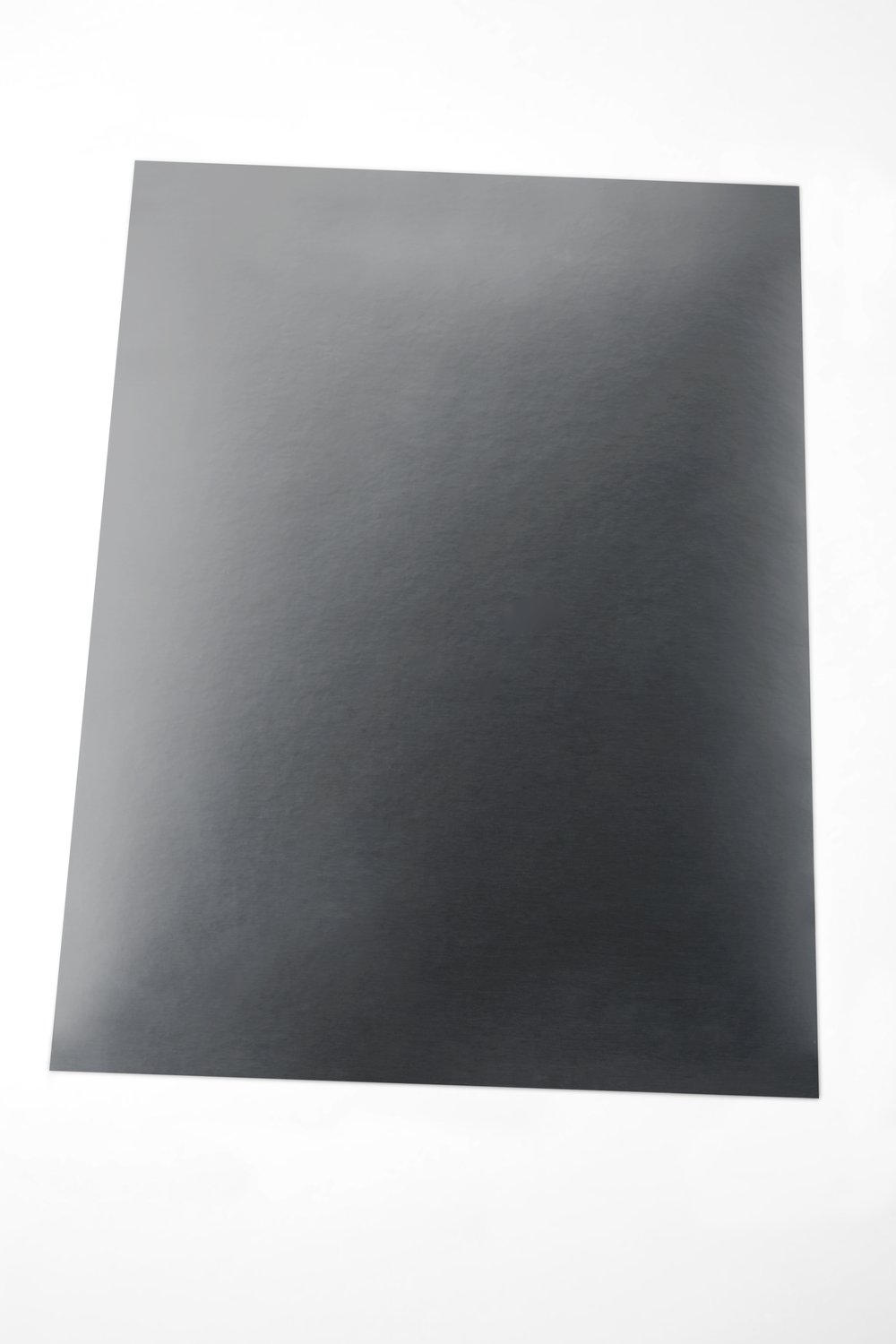

3M EMI Absorber AB6005HF, 25 mm x 10 m Roll

Part Number: 18806080063770 View more details
7010321488 - 3M EMI Absorber AB6005HF, 25 mm x 10 m Roll

Product Specifications

Size
25 mm x 10 m Roll
Unit of Measure
RO
Sold As
Case
Minimum Order Qty
5 RO
Incremental Order Qty
5 RO
Package Quantity
5 Rolls per Case
Stock Type
Make To Order
Shelf Life
365 Days
Catalog #
AB6005HF
Manufacturer ID
7010321488
UPC
18806080063770
ECCN
EAR99
Manufacturer
3M
View all 2 options in 3M EMI Absorber AB6005HF

Other Options at this size & color

  • 25 mm x 10 m Roll · 5 Case $171.10 / RO 3M EMI Absorber AB6005HF, 25 mm x 10 m Roll Currently viewing
Other sizes & options

Details

Highlights

*Halogen Free is defined as having maximum 900 ppm bromine, maximum 900 ppm chlorine, and/or maximum 1500 ppm total bromine and chlorine, per IEC 61249-2-21
Halogen Free* guaranteed
Halogen free, which is defined as having maximum 900 ppm bromine, maximum 900 ppm chlorine, and maximum 1500 ppm total bromine and chlorine, per IEC 61249-2-21
Non-conductive acrylics adhesive
Supplied on a removable liner for easy handling and die-cutting
Supplied on a removable release liner for easy handling and die-cutting
3M EMI Shielding Absorber AB6000HF/SHF Series is a hybrid shielding magnetic absorber consisting of a metal EMI shielding layer and absorbing layer with an insulation layer in between. The 3M AB6000HF/SHF provides good EMI absorbing and high-frequency EMI shielding for a lower signal-to-noise ratio (SNR). An acrylic pressure-sensitive adhesive and a removable release liner make applying the material easy and efficient. Available in sheets and rolls, these EMI absorbers are excellent for complex EMI applications requiring noise suppression, and shielding up to 18 GHz.
