3M Anisotropic Conductive Film Adhesive 7303, 2.5 mm x 35 m Roll

Part Number: 00051115524868 View more details

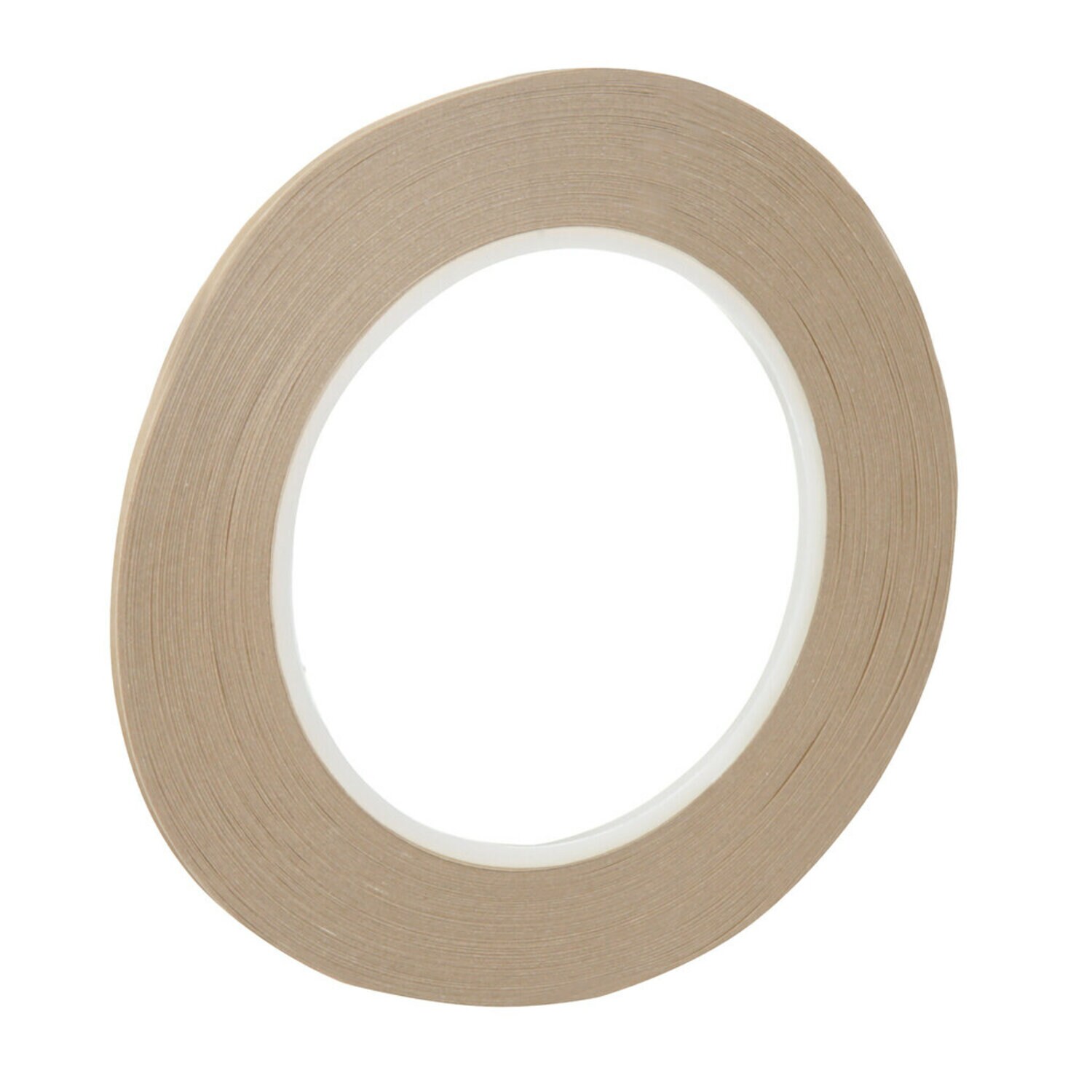

7000027563 - 3M Anisotropic Conductive Film Adhesive 7303, 2.5 mm x 35 m Roll

Product Specifications

Size
2.5 mm x 35 m Roll
Unit of Measure
RO
Sold As
Roll
Minimum Order Qty
50 RO
Incremental Order Qty
50 RO
Stock Type
Make To Order
Shelf Life
548 Days
Catalog #
7303
Manufacturer ID
7000027563
UPC
00051115524868
ECCN
EAR99
Manufacturer
3M
View all 4 options in 3M Anisotropic Conductive Film Adhesive 7303

Details

Highlights

Frozen storage
Good thermal stability
Heat cure
Reworkable
Tacky at room temperature
Thermo-set low temperature cure
3M ACF 7303 is an epoxy/acrylate-blend adhesive system filled with 43 micron silver-coated glass beads. It is slightly tacky at room temperature and cures at modest bonding temperature and pressure.The unbonded film is slightly tacky at room temperature and consists of a thermoset-elastomer and thermoplastic adhesive matrix randomly loaded with conductive particles. These particles allow interconnection of circuit lines through the adhesive thickness, but are spaced far enough apart for the product to be electrically insulating in the plane of the adhesive. Soft conductive particles are preferred when bonding to fragile substrates such as ITO on glass, as they deform against hard surfaces, but may also be used for other substrate types. 3M ACF 7379 may be used to bond a flexible printed circuit to glass-based devices such as displays or to another flexible printed circuit. Standard Lead Time: 14 Calendar Days
