3M Glass Cloth Electrical Tape 69, 1/2 in x 66 ft, White, 50 Rolls/Case

Part Number: 00054007100836 View more details

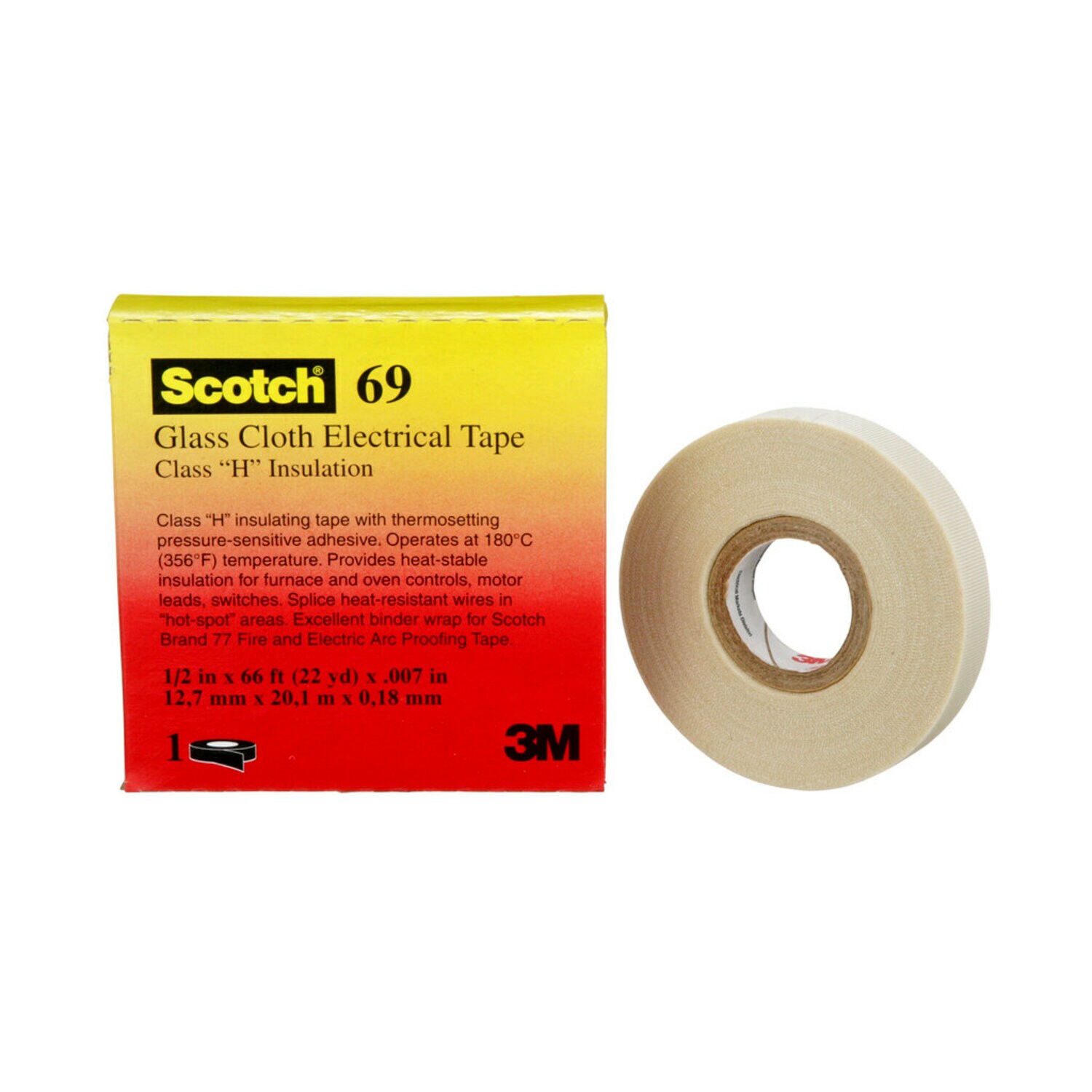

7000145501 - 3M Glass Cloth Electrical Tape 69, 1/2 in x 66 ft, White, 50 Rolls/Case

Product Specifications

Color
White
Size
1/2 in x 66 ft
Unit of Measure
RO
Sold As
Roll
Minimum Order Qty
10 RO
Incremental Order Qty
10 RO
Stock Type
Standard
Shelf Life
1825 Days
Catalog #
69-1/2"X66'
Manufacturer ID
7000145501
UPC
00054007100836
ECCN
EAR99
Manufacturer
3M
View all 17 options in 3M Glass Cloth Electrical Tape 69

Other Options at this size & color

  • 1/2 in x 66 ft · White · 1 Roll $23.07 / RO 3M Glass Cloth Electrical Tape 69, 1/2 in x 66 ft, White, 50 Rolls/Case Currently viewing
Other sizes & options

Details

Highlights

GLASS CLOTH BACKING: Optimally insulates with no shrinking or burning
INSULATES A VARIETY OF WAYS: Use as coil cover, anchor, banding, core layer and crossover insulation
LONG SHELF LIFE: Long lasting 5 year shelf life for continued use and performance
PRESSURE SENSITIVE ADHESIVE: Non–corrosive, solvent resistant, thermosetting silicone adhesive
PROVIDES A STRONG BOND: At extreme temperatures ranging from low temperatures to 392 ºF (200 ºC)
RELIABLE AND RESISTANT: Resists rotting and shrinking after extended use in a variety of environments
UL RECOGNIZED: UL Listed, Mil-I-19166C, CSA Certified. For RoHS and REACH information, please visit www.3m.com/regs
USE WITH SCOTCH 77 ARC AND FIRE PROOFING TAPE: Holds in place on cables and can be written on as marking tape
3M Glass Cloth Electrical Tape 69 is a white, 0.178 mm (7-mil) thick tape composed of a 0.140 mm (5.5-mil) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive.3M Glass Cloth Electrical Tape 69 features a pressure sensitive, high temperature, thermosetting, silicone adhesive. It is commonly used in UL applications rated up to 600 volts in dry locations and in a variety of coil/transformer and motor applications including as an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold-down, end turns and lead anchor and connections. UL recognized and 200°C (392°F) temperature rated. CSA certified and 180°C (356°F) temperature rated. RoHS Compliant and QPL Listed - QPL-19166 pre MIL-I-19166
