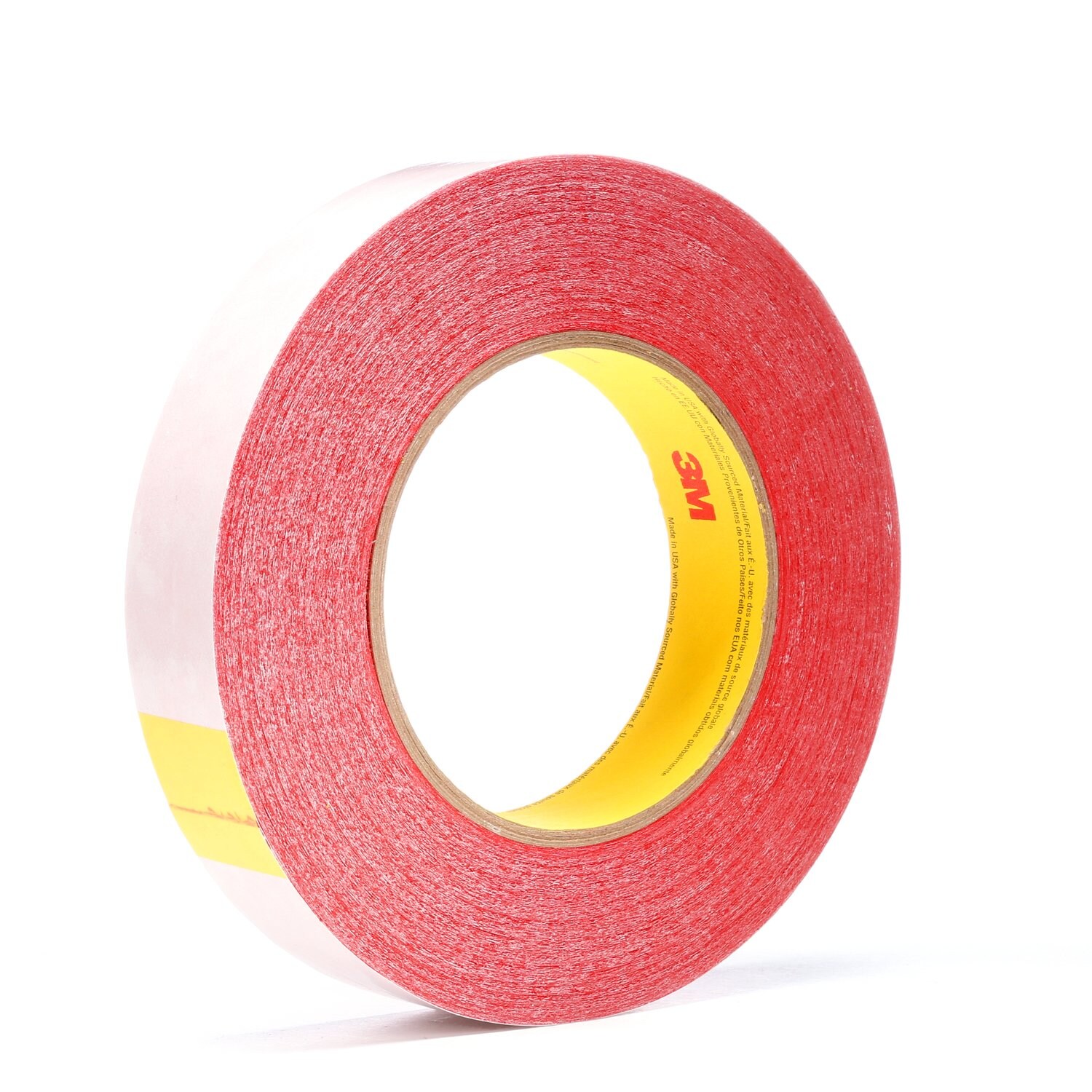

3M Double Coated Tape 9737R, Red, 24 mm x 55 m, 3.5 mil, 48 Roll/Case

Part Number: 00051115314667 View more details
7000049263 - 3M Double Coated Tape 9737R, Red, 24 mm x 55 m, 3.5 mil, 48 Roll/Case

Product Specifications

Color
Red
Size
24 mm x 55 m
Unit of Measure
RO
Sold As
Case
Minimum Order Qty
480 RO
Incremental Order Qty
48 RO
Package Quantity
48 Rolls per Case
Stock Type
Make To Order
Shelf Life
365 Days
Tape Type
900 Miscellaneous
Catalog #
9737R
Manufacturer ID
7000049263
UPC
00051115314667
ECCN
EAR99
Manufacturer
3M
View all 5 options in 3M Double Coated Tape 9737R

Details

Highlights

Available in clear
Excellent peel, tack and shear strength to withstand rigorous splicing applications
Good moisture resistance to ensure performance in a variety of situations
High tack acrylic adhesive performs well across broad temperature range
Ideal performance in high speed splicing applications
Versatile adhesion bonds well to kraft and coated papers, as well plastic
3M Double Coated Tape 9737 Clear is a double-sided tape mounted on a thin polyester carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It is mounted on 55 lb. densified kraft paper liner for easy release and manipulation during application.High Performance Adhesion Our 3M Double Coated Tape 9737 Clear is a 3.5 mil double-sided tape mounted on a 55 lb. densified kraft paper liner. In addition, it has a thin polyester carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It offers excellent temperature performance in various applications. When it comes to longevity, this tape will perform well up to 300°F/149°C in the short term, and up to 260°F/127°C for days or weeks. Results may vary depending on machine and web tensions, line speeds, nature of paper surface and application pressure. It adheres well to kraft and coated papers, and is commonly used for high performance splicing on paper, films and other continuous web processes. Recommended Applications • High-speed flying splices • Zero speed splices • Core starting • Splicing films, foils and corrugated paper What is Double Coated Tape? In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in web processing, construction, fabrication, arts and hobby.
