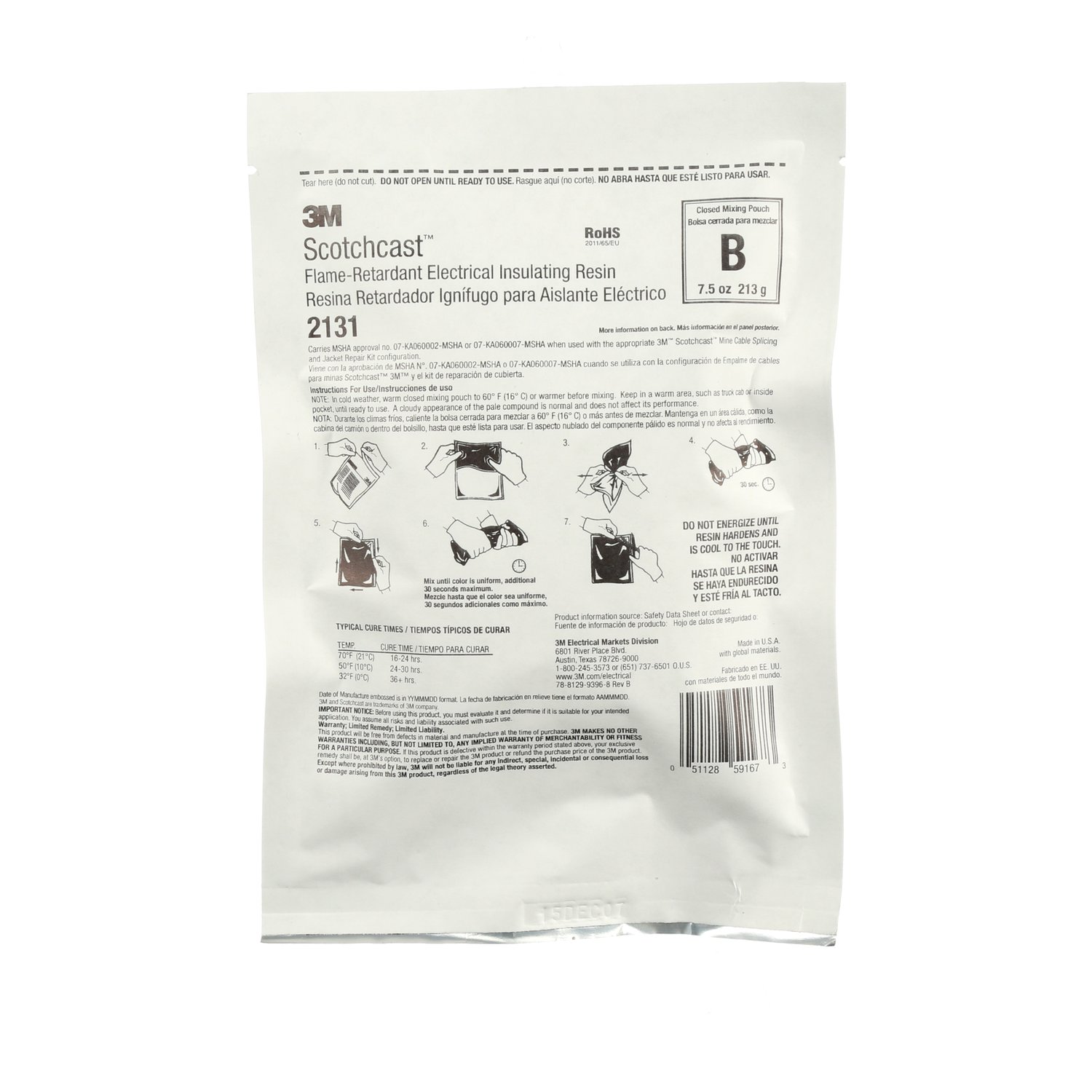

3M Scotchcast Flame-Retardant Compound 2131B, 213 grams, 10 /Case

Part Number: 00051128591666 View more details
7000006239 - 3M Scotchcast Flame-Retardant Compound 2131B, 213 grams, 10 /Case

Product Specifications

Unit of Measure
EA
Sold As
Each
Minimum Order Qty
10 EA
Incremental Order Qty
10 EA
Stock Type
Standard
Catalog #
2131B
Manufacturer ID
7000006239
UPC
00051128591666
ECCN
EAR99
Manufacturer
3M

Details

Highlights

Elongates 339% longer than its original size for easy insulation or wrapping
Flame-retardant
Has 17-minute gel time at 73 °F (23 °C)
Rated up to 1 kV
RoHS 2011/65/EU Compliant
Typical hardness (ASTM D2240) - 82 Shore A
Useful for replacing or repairing the jacket on both single- and multi-core power cables
Withstands a temperature range of 32 to 194 °F (0 to 90 °C)
3M Scotchcast Electrical Resin 2131 is a 2 part, flame retardant compound, useful for coating cable jackets when splicing or repairing mine and portable cables. This permanent, polyurethane, liquid type resin has a unique formulation used in rugged conditions. The high dielectric strength offers a very good electrical insulating property to the resin.3M Scotchcast Flame Retardant Resin 2131 has low gel point rating to ensure curing at room temperature. The high tensile strength of the resin exhibits a semi flexible property and good adhesion property after curing. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. It has a high flash point, preventing any fire hazard due to quick ignition. The flame retardant resin allows you to insulate cable splices operating up to 1 kV and to seal the crotch or sheath when terminating multi core cables. RoHS 2011/65/EU Compliant.
