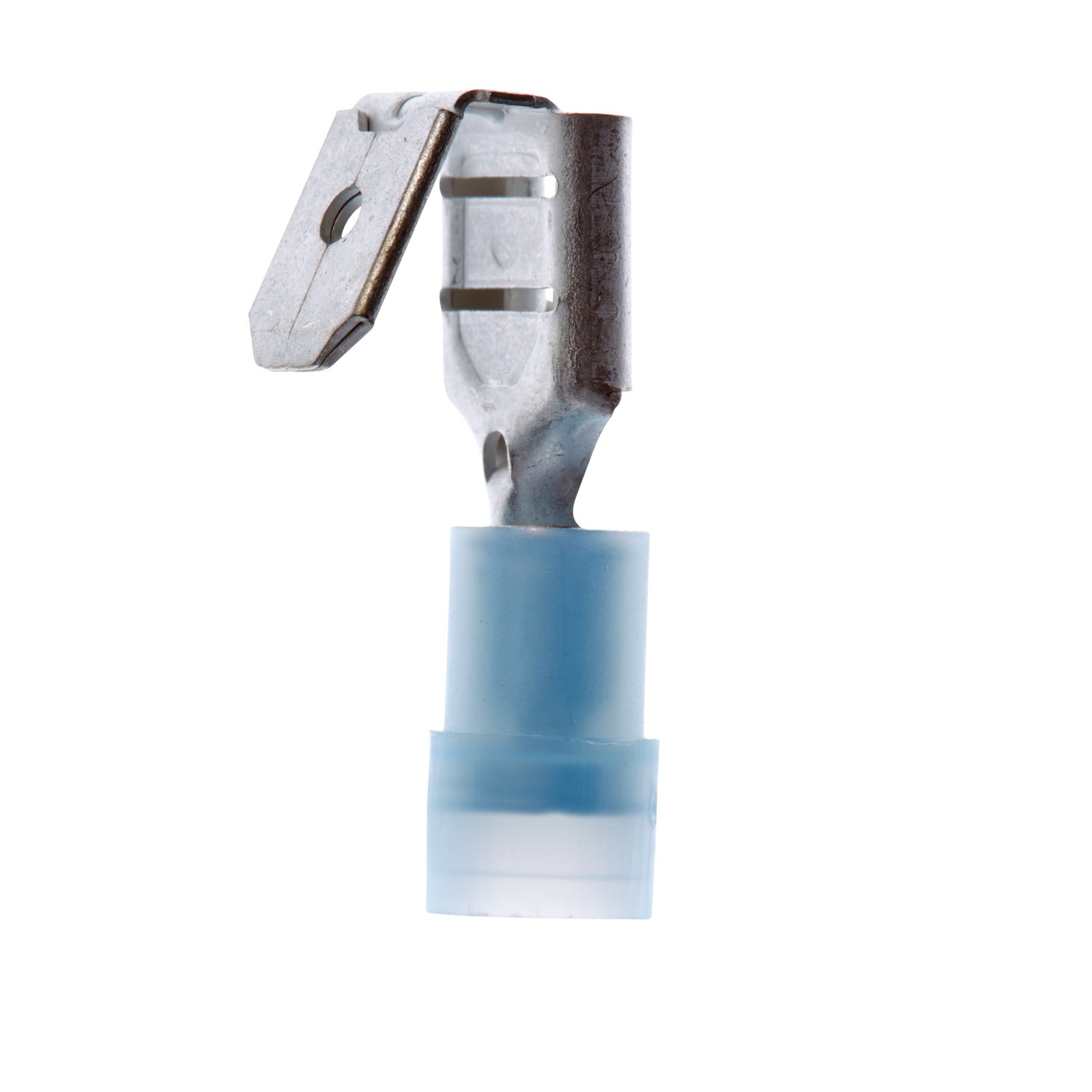

3M Scotchlok Multi-Stack Disconnect, Nylon Insulated w/Insulation Grip MNG14-250DMFK-A, 1000/Case

Part Number: 00051138980672 View more details
7000133194 - 3M Scotchlok Multi-Stack Disconnect, Nylon Insulated w/Insulation Grip MNG14-250DMFK-A, 1000/Case

Product Specifications

Unit of Measure
EA
Sold As
Case
Minimum Order Qty
1000 EA
Incremental Order Qty
1000 EA
Package Quantity
1000 Each per Case
Stock Type
Make To Order
Catalog #
MNG14-250DMFK-A
Manufacturer ID
7000133194
UPC
00051138980672
ECCN
EAR99
Manufacturer
3M

Details

Highlights

Accommodates wire sizes 16 to 14 AWG
Connects a male or female counterpart
Made of durable brass for good conductivity and has corrosion-resistant tin plating
Mates with 0.25-in wide male and female tab
Nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
Rated 300V for building wire
RoHS 2011/65/EU Compliant
The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Scotchlok Nylon Insulated with Insulation Grip Piggy-Back Disconnect terminal has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a nylon-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.3M Scotchlok Nylon Insulated with Insulation Grip Piggy-Back Disconnect terminal provides permanent electrical and mechanical connection to a pre-stripped end of a stranded copper wire. It is rated 300V for building wire. The terminal has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The nylon-sleeve insulation is abrasion-resistant and flared to ensure a positive grip. This terminal withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). RoHS 2011/65/EU Compliant.
