Millions of Consumable Products for the Aerospace Industry

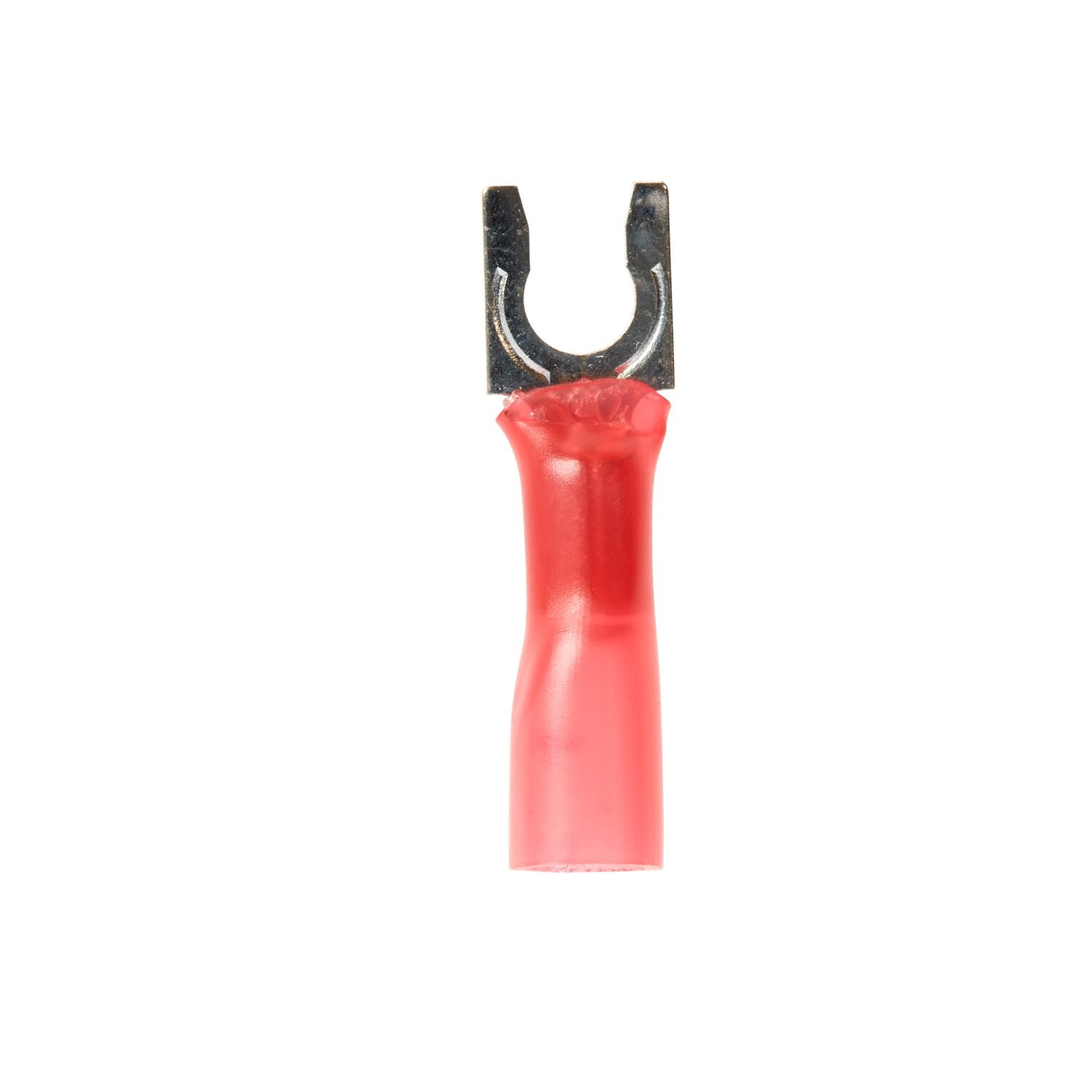

3M Scotchlok Locking Fork Heatshrink, 25/bottle, MH18-8FLX, spring-like tongue firmly fits around the stud, 125/Case

Part Number: 10051128590963 View more details
7010398254 - 3M Scotchlok Locking Fork Heatshrink, 25/bottle, MH18-8FLX, spring-like tongue firmly fits around the stud, 125/Case

Product Specifications

Size
25/bottle
Unit of Measure
EA
Sold As
Pack
Minimum Order Qty
125 EA
Incremental Order Qty
125 EA
Package Quantity
25 Each per Pack
Stock Type
Make To Order
Catalog #
MH18-8FLX
Manufacturer ID
7010398254
UPC
10051128590963
ECCN
EAR99
Manufacturer
3M

Details

Highlights

600V-rated for building wire and 1000V for signs, fixtures or luminaires
Electrolytic copper construction offers good conductivity
Spring-like tongue firmly fits around the stud
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Withstands a maximum temperature of 221 degrees F (105 degrees C)
3M Scotchlok Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M Scotchlok Heat Shrink Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. This versatile terminal has a brazed-seam barrel that is covered by a see-through, pre-insulated transparent tubing to provide seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. RoHS 2011/65/EU Compliant.
